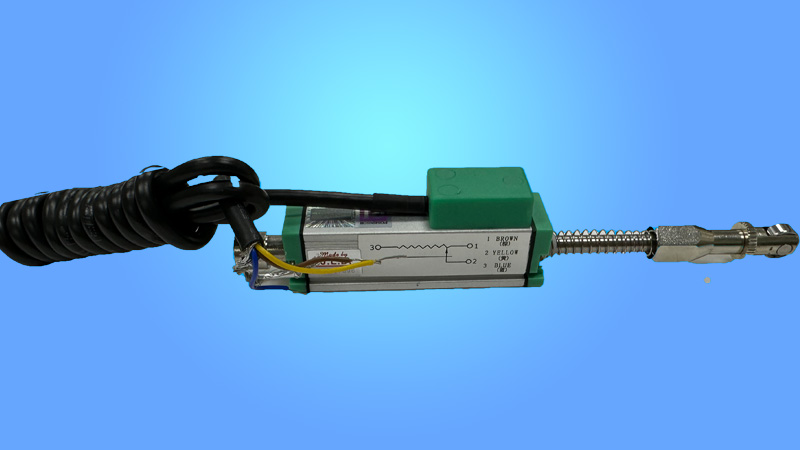

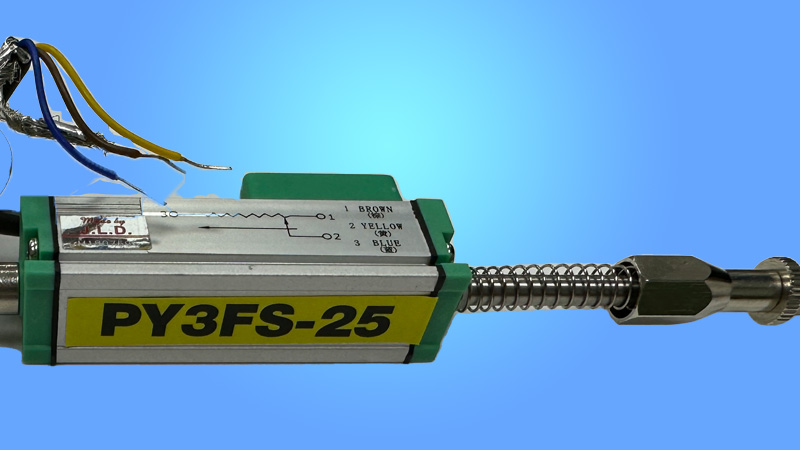

PY3 Roller Head Pre-loaded Spring Type LINEAR MOTION POSITION SENSORS is designed for direct absolute measurement and available in stroke length up to 50mm. The mini design is suitable for mounting in instruments or machines with limited space and specially design for moving stock application.
An improved technique for making connection to resistance track (Double Trimming Technique) ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions.
The fixing feet are adjustable to the desired position.

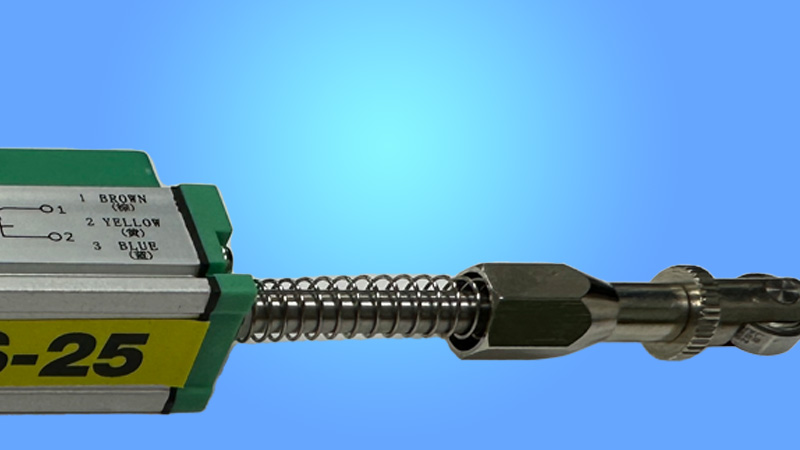

The bearing roller is suitable for measurement of moving pile stock thickness along moving direction.
| Series | - | Accessories | - | Length (mm) | Ingress Protection Grade | |
|---|---|---|---|---|---|---|
| PY3 | ||||||
| Example | PY3 | - | FS | - | 50 | P |
| Available Options | PY3 | - |
|
- | 10-50 |
|
